INDUSTRIAL PC

Stylish Design for Digital Signage System


Equipped with DVI port supports full HD (1920 x 1080 pixel) display. Ideal for Digital Sign, Digital Poster and Facility guidance with large size LCD monitors. It is possible to put in A5 size space of only 50mm gap. You can mount BX955 on not only wall,but also back side of LCD display with VESA mount fittings.

Space-Saving and Eco-Friendly The Resource-Saving PC

    • Energy-saving Design which propels "Green IT"
      Sufficient performance is consistent with low power consumption approx. 18WH*1 at maximum performance. CO2 emission was reduced less than 1/6*2 from standard desktop PC. It makes contribution to reduce the operation cost and promotion of energy saving.

    • A5 Sized Footprint Compact Design

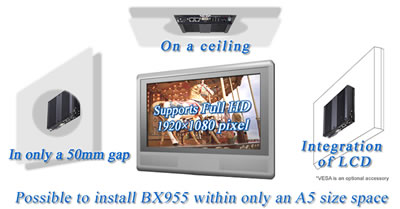

      A space-saving design of 35mm (H) x 182mm (W) x 155mm (D) enables an installation within A5 size space of only 50mm gap. Dimensions and weight of your machine will be reduced. Free from the constraints of install location, and it keeps expression of the design.
    • Robust and Reliable Slit-less / fan-less design
      Not only free from dust and substance intrusion, but also use of long life parts largely reduces the maintenance check operation. Completely spindle-less design with CF card storage, without ventilation slits or CPU coolers.
    *1 Measured power consumption at 100% CPU load without USB devices in our test environment.
    *2 Assumed the power consumption of ordinary desktop PC (in high load) as 12Wh, and CO2 emission per 1kWh power consumption as 0.36g.


BOX COMPUTER BX955 specifications

    Fan-less/Stil-less Power Saving Platform
  • Intel Atom Processor N270
  • 945GSE chipset
  • Graphics processing unit GMA950
    Automated Operation
  • Automatic start up
  • Resume By Alarm
  • Stars up by network control
  • Wake On LAN / Power On by Ring
    Dual CF slots Various kind of Interfaces
  • x2 CF slots, x4 USB2.0, 2x RS-232C, 2x LAN.
  • Metal fittings and clamps provided to prevent accidental cable disconnection
Model IPC-BX955D-DC500 IPC-BX955D-DC556
OS - Windows Embedded Standard
CPU Intel® Atom™ Processor N270 (1.60GHz / FSB533MHz)
Chip set Intel® 945GSE + ICH7M-DH
Memory Standard : 1GB (200pin SO-DIMM socket x 1) PC2-4300 (DDR2 533) DDR2 SDRAM / Max : 2GB
Video Controller Intel® GMA950 (built in Intel 945GSE Chipset)
Resolution
  • 640×480
  • 800×600
  • 1,024×768
  • 1,152×864 *1
  • 1,280×600 *1
  • 1,280×720 *1
  • 1,280×768
  • 1,280×960 *1
  • 1,280×1,024
  • 1,360×768
  • 1,400×1,050
  • 1,600×900 *1
  • 1,600×1,200 *1
  • 1,856×1,392 *1
  • 1,920×1,080 *1
  • 1,920×1,200 *1
Display colors Max : 16,770,000 colors
Audio AC'97 compliant, LINE OUT×1, MIC IN×1
* Please contact us if you need High Definition Audio.
IDE Primary IDE Master / Slave (2 devices[Max.]) for CF CARD slot
LAN Intel® 82573L Controller
1000BASE-T *2 / 100BASE-TX / 10BASE-T×2 (Wake On LAN)
USB 4ch (USB 2.0 compliant)
Serial Ports RS-232C 2ch (Baud rate 50 to 115,200bps)
Hardware Monitor Monitoring CPU temperature, board temperature and power voltage
Watch Dog Timer Software programmable, 255 level (1sec to 255 sec), RESET when time-up occurs
RTC/CMOS Real time clock precision error: within ±3 minutes per month (25°C )
Lithium backup battery life: 10 years or more (Built in ICH7M-DH)
Power Management Power management setting in BIOS, Power On by Ring/Wake On LAN
Supports PC98/PC99 ACPI Power management
Interface Video 1 Port (29pin DVI-I Connector), bundled DVI-Analog RGB adapter
* Please contact us if you need HDMI(Type A I/F or HDCP).
Audio LINE out: Φ3.5 Stereo mini jack, Full-scale output level 1.5Vrms(Typ.),
Dual 50mW Amplifier
MIC in: Φ3.5 Stereo mini jack, Full-scale input level 1.3Vrms(Typ.)
CF CARD Slot 2 Slots (CF CARD Type I) 2 Slots (CF CARD Type I)
installed one CF CARD(2GB, 1 Pattition) on CF1 slot. *3
LAN 2 Ports (RJ-45 connector)
USB 4 ports (A-TYPE connector)
RS-232C 2 ports (9pin D-SUB connector [male])
Power Supply Input Voltage 12 to 24VDC *4
Absolute
maximum rating		 10.8 to 31.2VDC
Power Consumption 12V 3.3A (Max.)
24V 1.7A (Max.)
External device
power capacity		 CF CARD Slot : +3.3VDC 1A(500mA×2)
USB I/F: +5VDC 2A(500mA×4)
Dimensions (mm) 182(W) × 155(D) × 35(H) (Exclusive of protrusions)
Weight Approx. 1.4kg
Operating temperature *5 Horizontal installation : 0 to 50°C *2
Vertical installation other than above : 0 to 45°C *2
Storage temperature -10 to 60°C
Humidity 10 to 90%RH (No condensation)
Floating dust particles Not to be excessive
Corrosive gases None
Line-noise resistance Line noise AC line / ±2kV *6
Signal line / ±1kV (IEC61000-4-4 Level 3, EN61000-4-4 Level 3)
Static electricity resistance Contact discharge / ±4kV (IEC61000-4-2 Level 2, EN61000-4-2 Level 2)
Atmospheric discharge / ±8kV (IEC61000-4-2 Level 3, EN61000-4-2 Level 3)
Vibration resistance Sweep resistance 10 to 57Hz/semi-amplitude 0.375 mm 57 to 500Hz/5.0G
60 min. each in x, y, and z directions
(JIS C0040-compliant, IEC68-2-6-compliant)
Impact resistance 100G, half-sine shock for 6 ms in x, y, and z directions (JIS C0041-compliant, IEC68-2-27-compliant)
Grounding Class D grounding (previous class 3 grounding), SG-FG / continuity
*1 Those resolusion cannot be configured with the analog RGB output.
*2 Please make sure the operating temperature when you use the 1000BASE-T. Horizontal Installation: 0 to 45°C, Other directions: 0 to 40°C.
*3 The capacity of CF is a value when 1GB is calculated by 1 billion bytes. The capacity that can be recognized from OS might be displayed fewer than an actual value.
*4 Use a power cable shorter than 3m.
*5 For more details on the manual book.
*6 This value comes with AC adapter "IPC-ACAP12-04".
